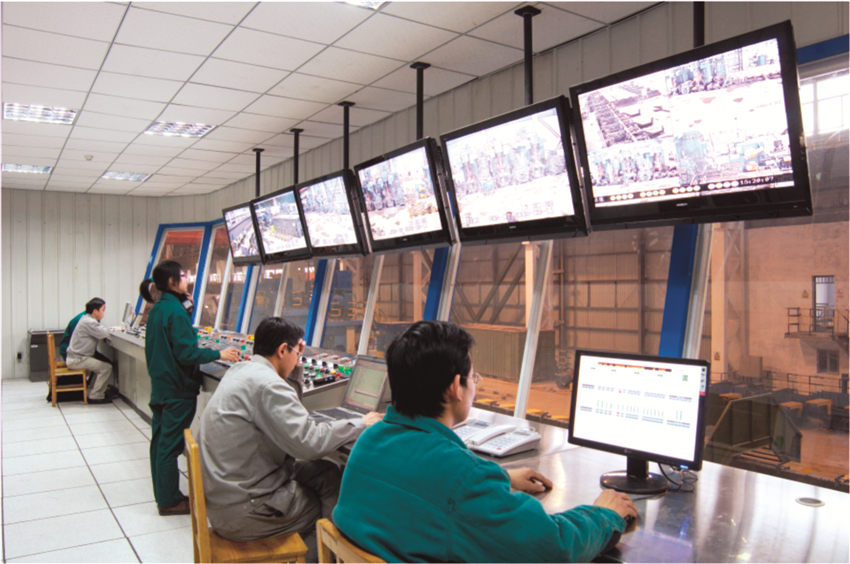

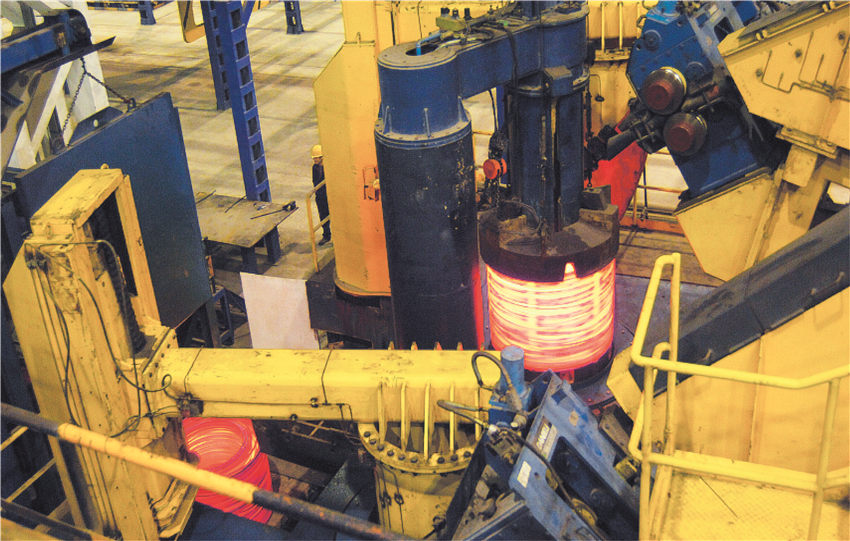

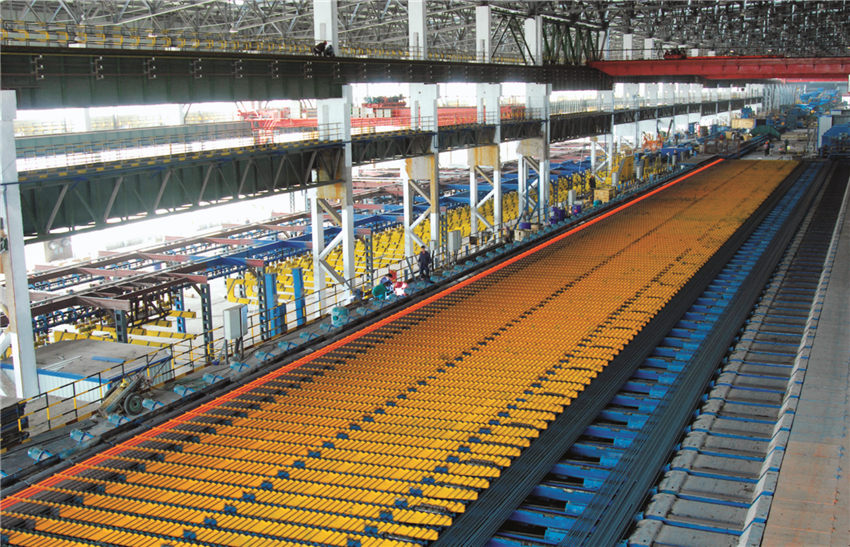

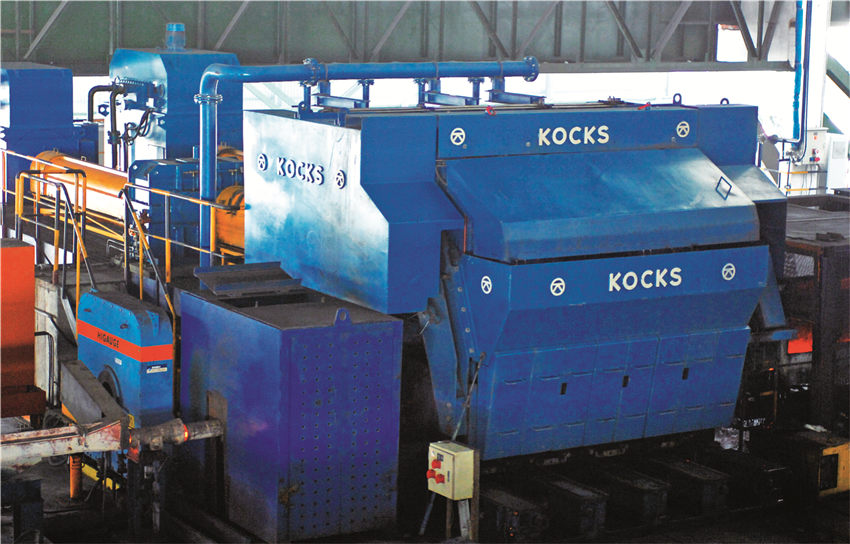

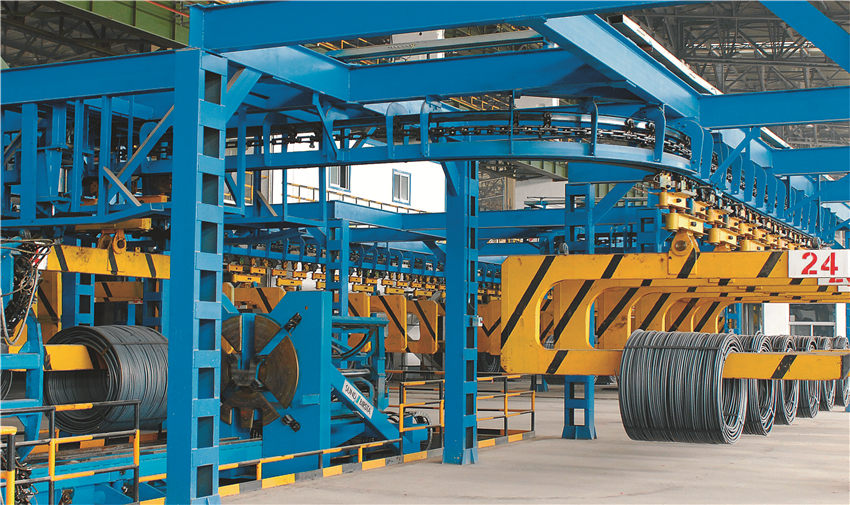

特殊鋼棒（卷）生產線是一條全連續式棒材和大盤卷復合熱軋生產線，主要設備從意大利DANlELl、德國KOCKS、SIMENS等公司引進，全部軋機主傳動采用直流變頻調速技術，全線由計算機系統自動控制，為軋線設備的可靠運行和生產管理提供了系統保證。該生產線減定徑機組德國KOCKS軋機是世界上生產圓鋼尺寸精度最高的軋機，軋出的成品圓鋼精度等級能達到甚至高于1/4~1/5DlN1013標準，并且可以實現自由尺寸軋制，可實現熱機軋制工藝技術，全線的數字化控制和在線測徑技術、全線的控軋控冷技術、在線探傷技術。產品規格：?16mm～?90mm直條棒材和?14mm～?42mm大盤卷。直棒產品主要以軸承鋼、彈簧鋼、合結鋼、非調質鋼、碳素結構鋼、易切削鋼等產品為主。大盤卷產品主要以冷鐓鋼、優質碳素結構鋼、合金結構鋼、軸承鋼、易切削鋼、彈簧鋼等為主，是一條具有國內一流、國際領先水平的棒材、大盤卷復合生產線，產品具有內部組織均勻、表面質量好、尺寸精度高、產品品類全等特點。

The special steel bar (coil) production line is featured with the composite hot rolling function of fully continuous bars and large coils. Its main equipment is sourced from Italian DANlELl, German KOCKS, SIMENS and other companies. The main drives of all rolling mills are supported by the DC frequency conversion speed regulation technology. The whole line is automatically controlled by a computer system, providing a system guarantee for the reliable operation and good production management of the rolling equipment. The German KOCKS rolling mill of the sizing unit of this production line features the highest dimensional accuracy in producing round bars in the world. The accuracy of the finished round bar produced can reach or even exceed 1/4-1/5DlN1013. Besides, it can realize free-size rolling, and hot rolling process technology. The whole line operates under digital control and powered by the online diameter measurement technology, whole-line controlled rolling and cooling technology, and online flaw detection technology.  It can produce straight bars with the specification ranging from ?16mm to ?90mm and large coils with the specification ranging from ?14mm to ?42mm. Straight bar products mainly include bearing steel, spring steel, alloy steel, non-quenched and tempered steel, carbon structural steel, free-cutting steel and other products. Large coil products mainly comprise cold heading steel, high-quality carbon structural steel, alloyed structural steel, bearing steel, free-cutting steel, spring steel, etc. The production line is a bar and large coil composite one ranking among the top class both domestically and internationally. Products from it are characterized by a uniform internal structure, good surface quality, high dimensional accuracy and complete product categories.

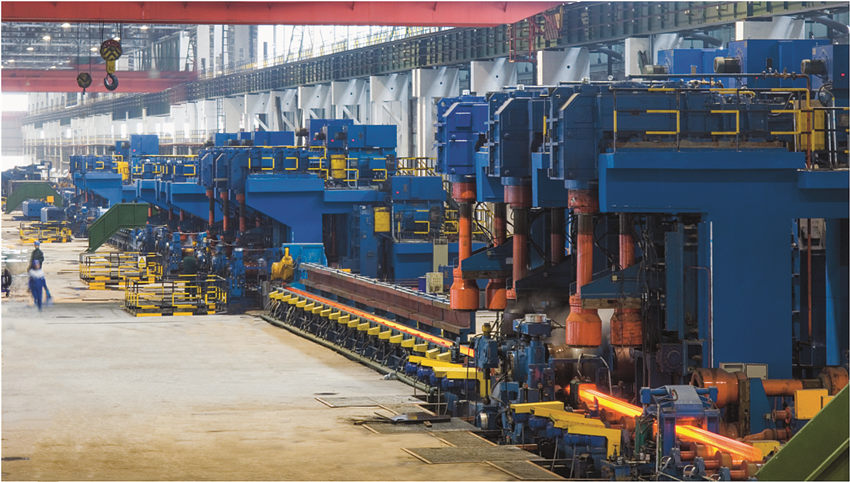

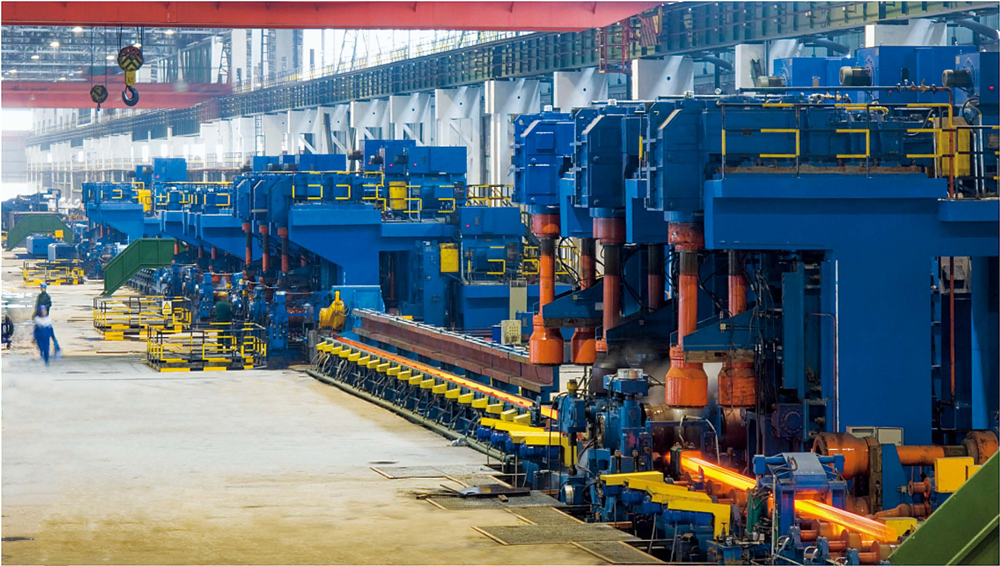

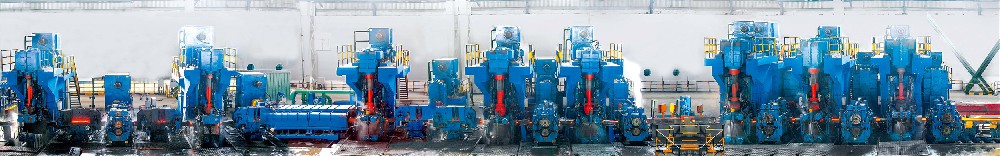

粗軋機 ROUGHING MILL

特殊鋼棒（卷）生產線 THE SPECIAL STEEL BAR (COIL) PRODUCTION LINE
